HOPP

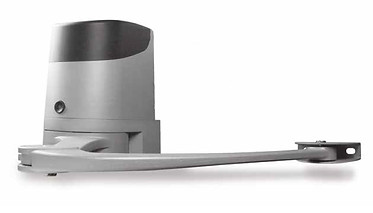

HOPP SWING GATES
HOPP
NICE - For swing gates with leaves up to 2.4m, ideal for large columns.
Two irreversible 24 Vdc versions with micrometric adjustment mechanical stops on opening and closing: with built-in control unit (HO7124) and without control unit (HO7224).
Powerful thanks to the 250 Nm torque.
Resistant and compact: 180 mm in width, ideal for any kind of post. Small shockproof body with aluminium base.
Sturdy, aluminium anti-shearing arm.
Easy to install: thanks to the new fixing bracket with a quick connector for the motor. No welding.
Everything under control: thanks to compatibility for operation with Opera BUS T4, the unit O-Viewcan be used to expand the options of programming, control and diagnostics of the automation on site and remotely.
Sophisticated electronics with the built-in control unit, ust 3 keys to manage all programming operations:
•Obstacle detection and possibility of connecting to 8.2 KOhm sensitive edge, fototest;
•Automatic fault diagnostics;
•automatic memorization of limit switches on opening and closing with self-learning function;
•Possibility of configuring the stop input in self-learning mode, NO, NC and the latest generation 8.2 KOhm resistive sensitive edges;
•Deceleration on opening and closing;
•Simple connection of pairs of additional photocells;
•Programming of pause time;
•Pedestrian open and partial open;
•Clutch with anti-crush safety feature.
Energy saving with no black outs: 3 standby modes to reduce mains consumption, or battery power consumption if connected to the Solemyo kit. Operation in the event of a power failure thanks to the optional batteries (PS124).
Ideal for intensive use. Irreversible electromechanical 24 Vdc gear motor with articulated arm, surface mounted.
HOPPKIT BD
NICE - For swing gates with leaves up to 2.4m, ideal for large columns.
Kit contains:
HO7124 + HO7224
2 Electromechanical gearmotors, surface mounted; HO7124 (with control unit and OXIBD bidirectional radio receiver with connector included), HO7224 (without control unit).
2x ON3EBD - 2 Transmitters 433.92 MHz, 3 channels, bidirectional.
1X EPMB - 1 Couple of external photocells designed for connection by Nice BlueBUS.
1X ELAC - 1 LED flashing light with integrated aerial.
1X TS - 1 Signboard.
--------------------------------------------------------------------
Two irreversible 24 Vdc versions with micrometric adjustment mechanical stops on opening and closing: with built-in control unit (HO7124) and without control unit (HO7224).
Powerful thanks to the 250 Nm torque.
Resistant and compact: 180 mm in width, ideal for any kind of post. Small shockproof body with aluminium base.
Sturdy, aluminium anti-shearing arm.
Easy to install: thanks to the new fixing bracket with a quick connector for the motor. No welding.
Everything under control: thanks to compatibility for operation with Opera BUS T4, the unit O-Viewcan be used to expand the options of programming, control and diagnostics of the automation on site and remotely.
Sophisticated electronics with the built-in control unit, ust 3 keys to manage all programming operations:
•Obstacle detection and possibility of connecting to 8.2 KOhm sensitive edge, fototest;
•Automatic fault diagnostics;
•automatic memorization of limit switches on opening and closing with self-learning function;
•Possibility of configuring the stop input in self-learning mode, NO, NC and the latest generation 8.2 KOhm resistive sensitive edges;
•Deceleration on opening and closing;
•Simple connection of pairs of additional photocells;
•Programming of pause time;
•Pedestrian open and partial open;
•Clutch with anti-crush safety feature.
•
Energy saving with no black outs: 3 standby modes to reduce mains consumption, or battery power consumption if connected to the Solemyo kit. Operation in the event of a power failure thanks to the optional batteries (PS124).
Ideal for intensive use. Irreversible electromechanical 24 Vdc gear motor with articulated arm, surface mounted.
